Technical data
Relative humidity
0...100 % RH
Temperature
-30 ... + 70 °C
Signal output
0...1 V
0...10 V
4...20 mA
0...10 V
4...20 mA
Supply voltage
6 ... 30 V DC
15 ... 30 V DC
12 ... 30 V DC
15 ... 30 V DC
12 ... 30 V DC
Cable
1,5 m
Accessories

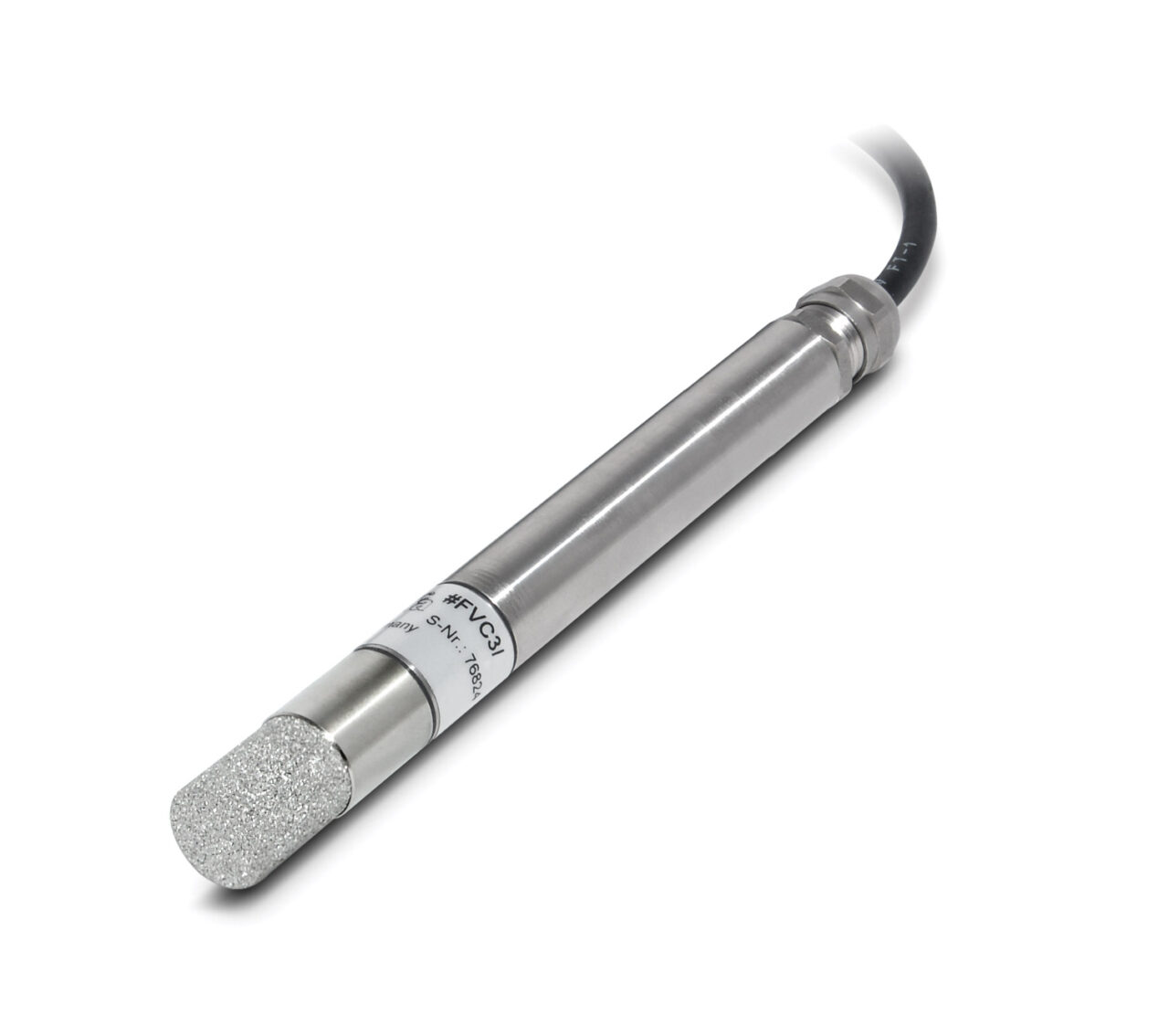

VC - Compact rod sensor
Compact stainless steel rod sensor for use under extreme conditions
Features
- Operating temperature up to 80°C
- Humidity accuracy: ±2% RH (5…95 %RH at 10…40 °C)
- Temperature accuracy: ± 0.2 K with voltage output
- Temperature accuracy: -0.2…+0.6 K with current output
- Robust
- high-quality steel tube
- IP65
Industrial VC rod and compact transducer. They can be used in a wide range of applications and have been specially developed for extreme conditions. Their design also makes them ideal for equilibrium moisture measurements in bulk materials and masonry.
The use of the Mela® sensing element guarantees high long-term stability, resistance to dew formation, low hysteresis and good dynamic performance.
