Technical data
Output range
Control range
Accuracy
0...100 % RH
5 ... 95 % RH
≤ ±3 % RH
0 ... + 100 °C
- 30 ... + 70 °C
more on request
Breaking capacity
Switching voltage
Switching current
Switching outputs
≤ 60 W / 62,5 VA
≤ 48V DC / AC
2 relay contacts (potential-free)
Use DIP switch to select N/C or N/O contact
13 … 26 V AC

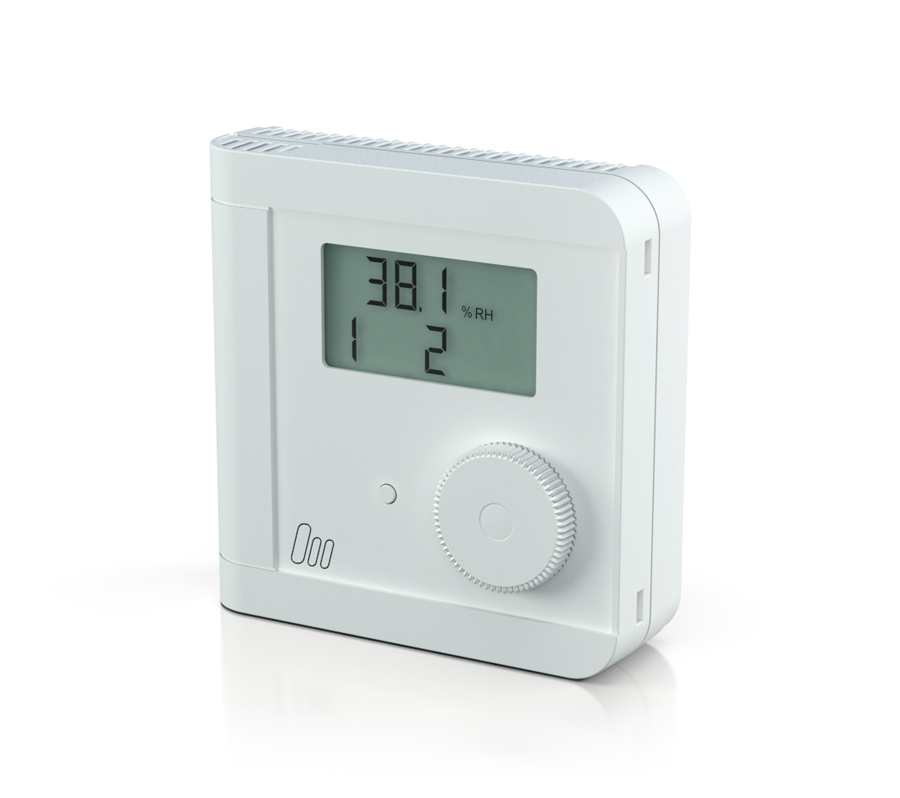

eStat10 - electronic hygrostat
Two switching outputs and two analogue outputs
Features
- Operating temp. up to 60 °C
- Accuracy H.: ±3 % RH
- Accuracy T.: ±0.3 K
- 2 configurable switching outputs
- 2 permanent signal outputs
- Long-term stability
- Easy to install
- Temperature compensation
- Keylock
Indoor electronic humidistat – combined device – sensor and hygrostat in one
Hygrostat with two individually configurable relays and two additional analogue outputs (for humidity and temperature) are suitable for many applications: HVAC and building automation, cooling and climate technology, storage and transport, apparatus and plant engineering, production and process automation, agricultural and food technology, energy and environmental technology or meteorology.

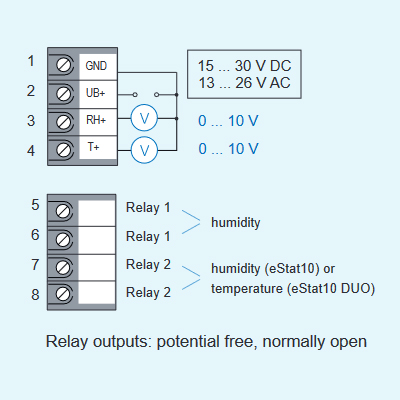

The potential-free relay outputs can be configured internally as either normally closed (NC) or normally open (NO) contacts. Both humidity set values and the desired hysteresis can be easily set without having to open the housing. It can be set with dip switch or rotating knob.
Easy to install
All the electronics are located in the cover. During assembly, first of all, the bottom section is mounted in the required position. The cover that contains the sensitive electronics can be connected and closed at any point later on and that without tools. This makes it easier to safely assemble on a construction site.
