Technical data
Relative Humidity
0...100 % RH
Temperature
-40 ... + 80 °C
Dew point temperature
Wet bulb temperature
Absolute humidity
Mixing ratio
Enthalpy
Wet bulb temperature
Absolute humidity
Mixing ratio
Enthalpy
0 ... +70 °C
-10 ... +50 °C
0 ... 20g/m³
0 ... 100g/m³
0 ... 100g/kg dry air
0 ... 80kJ/kg
-10 ... +50 °C
0 ... 20g/m³
0 ... 100g/m³
0 ... 100g/kg dry air
0 ... 80kJ/kg
Signal output
RS232, RS485 Modbus
Supply voltage
5 ... 30 V DC
Accessories
ITK - Stainless steel probes (modbus)
Humidity and temperature probe with RS485 / MODBUS-RTU or RS232
Features
- Operating temp. -40 … 80 °C
- Accuracy H.: ± 1,5 % RH / 10…90 % RH
- Accuracy T.: ± 0,2 K
- Robust
- Very precise
- Dew-resistant
- Stainless steel
- IP 65
Options

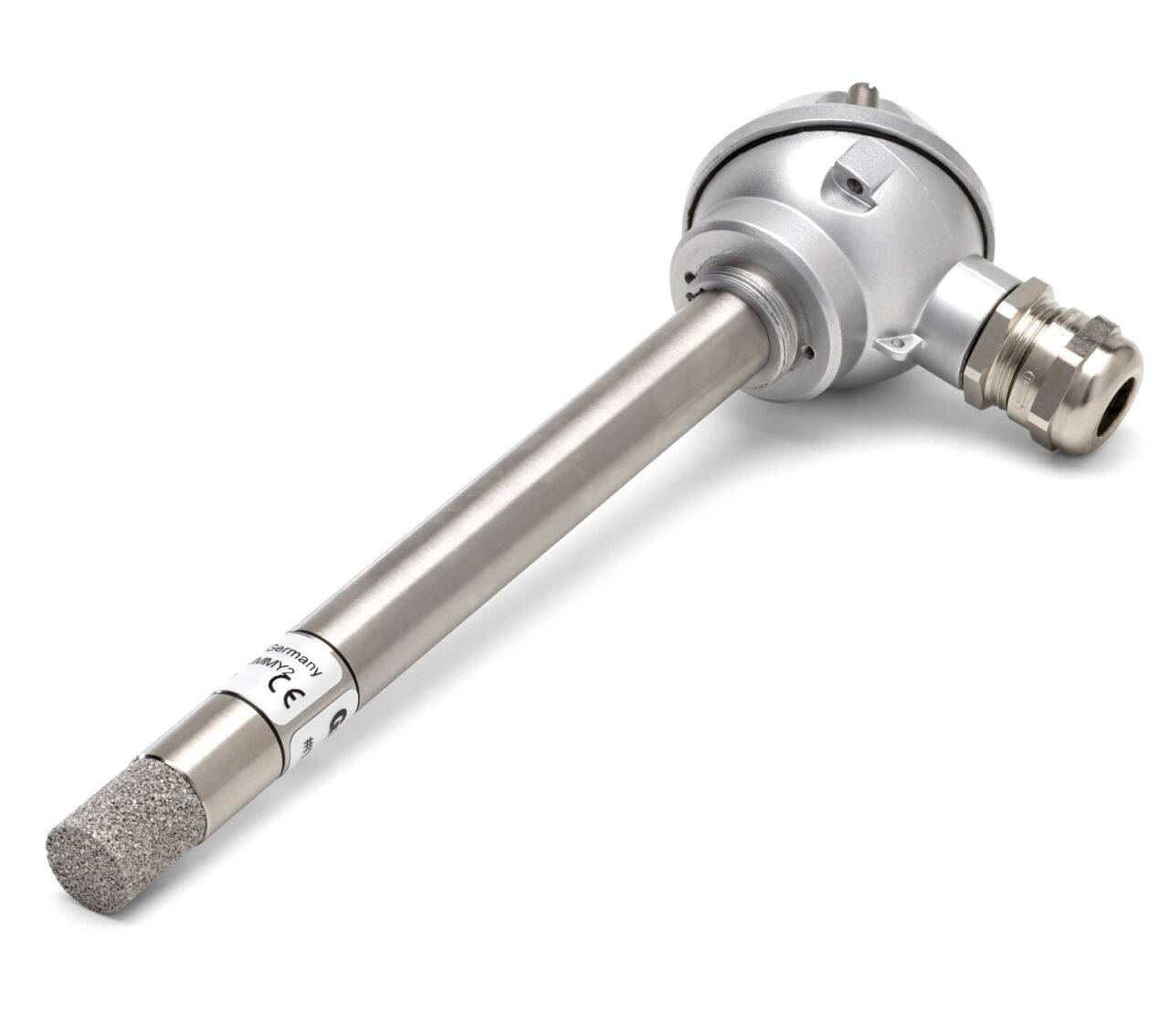

Transmitters in the I series are robust, compact probe sensors to measure relative humidity and temperature with high precision. They can be used for a wide range of applications. Equipped with stainless steel sintered filters, they can be used in extreme locations near the sea, in deserts, mountains, areas with high air speeds.
Implementing the Modbus RTU protocol stack makes these sensors bus compatible.
Capacitive MELA® sensorchips
Equipped with the highly dynamic capacitive MELA® sensor element, the sensor provides reliable performance across the full humidity range. Using the MELA® sensor element ensures long-term stability, resistance to dew formation, minimal hysteresis, and strong dynamic capabilities.
