Technical data
Control range
50...100 % RH
Output
Voltage
Switching current
Breaking capacity
Voltage
Switching current
Breaking capacity
potential free changeover contact
max. 48 VAC
max. 0,5 A
max. 10 W
max. 48 VAC
max. 0,5 A
max. 10 W
Output signal
0...10 V
Supply Voltage
15...30 VDC/ 24 VAC +/- 10%
HSF Humidity sensor
for monitoring the formation of condensation with IP65
Features
- with capacitive Mela® humidity sensor element
- for condensation control
- IP 65

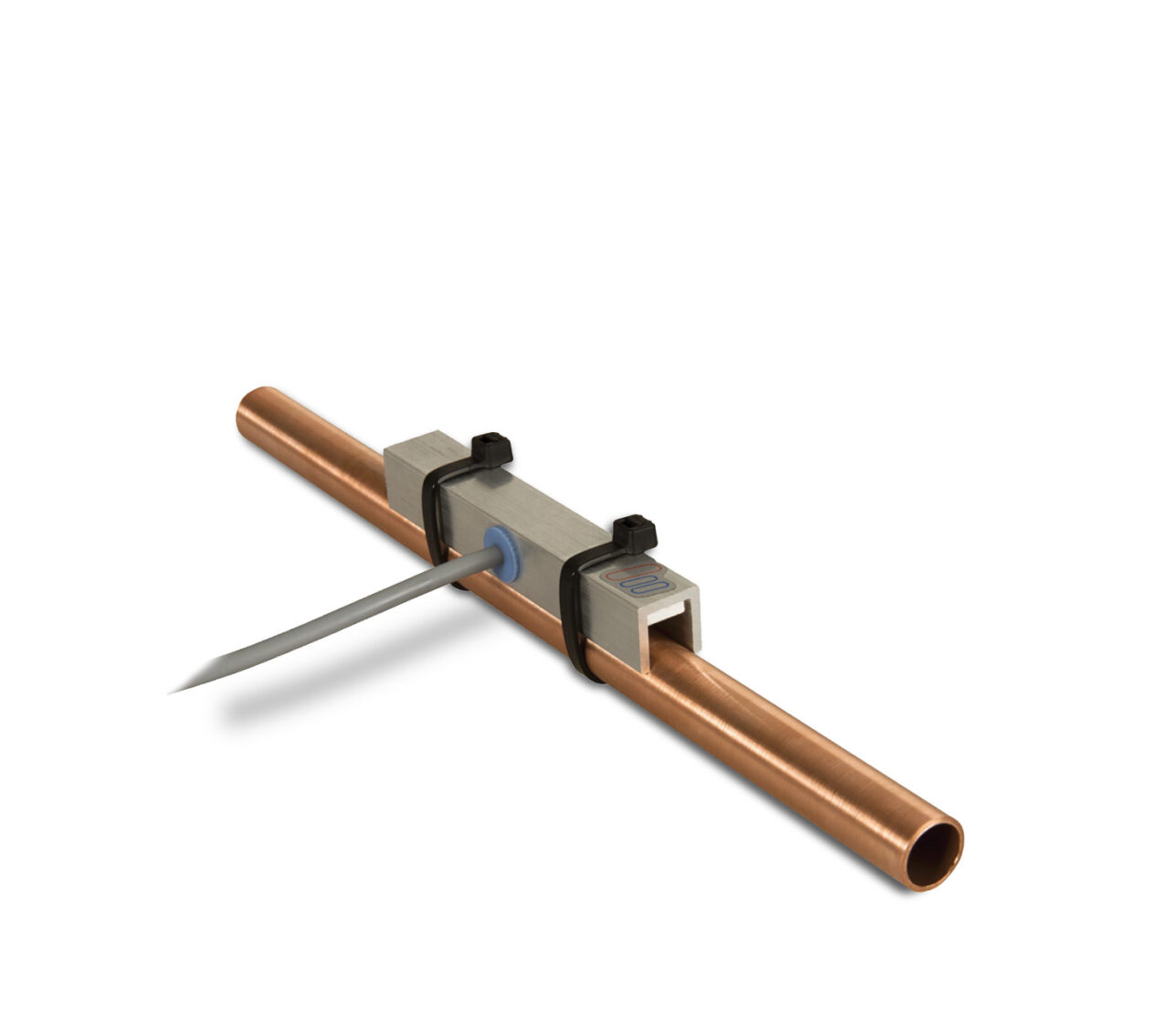

Dew-point control sensors are mounted on cooling water pipes or on cooled surfaces to monitor if the temperature drops below the dew-point.
They measure the relative humidity to
– influence cooling power
– switch cooling systems on or off
– signal the point at which the temperature drops below the dew-point.
This makes it possible to operate eg. chilled ceilings optimally even in critical climate conditions, without the formation of condensation.
Prevent damage
By effectively managing condensate, a condensation controller helps prevent water damage, maintain system efficiency, and reduce the risk of indoor air quality issues caused by excessive moisture or air humidity.
