Technical data
Relative humidity
0...100 % RH
Temperature
0 ... +50 °C
0 ... +100 °C
-10 ... +90 °C
-30 ... +60 °C
0 ... +100 °C
-10 ... +90 °C
-30 ... +60 °C
Signal output
0...10 V
0...20 mA
4...20 mA
0...20 mA
4...20 mA
Supply voltage
15 … 30 V DC / 24 V AC±10%
15 … 30 V DC / 24 V AC±10%
15 … 30 V DC
15 … 30 V DC / 24 V AC±10%
15 … 30 V DC
Accessories

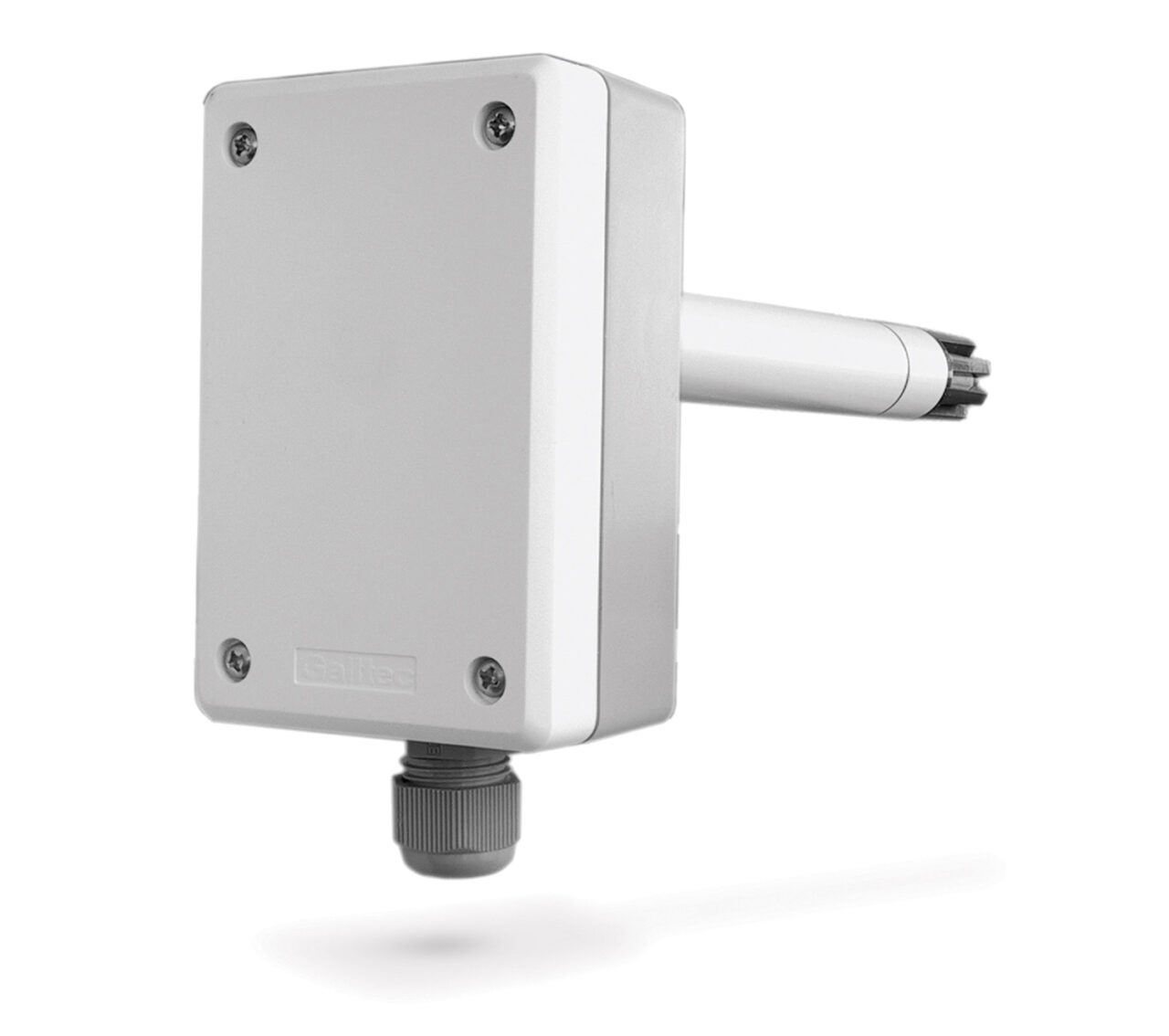

(T)FK80J - duct version
Transmitter for semi-industrial and industrial applications
Features
- Operating temperature up to 80 °C
- Accuracy H.: ± 2 % RH / 40…60 % RH
- Accuracy T.: ± 0,2 K (voltage output)
- Accuracy T.: ± 0,3 K (current output)
- Robust
- With capacitive humidity sensor
FK80J Humidity Sensors
TFK80J Humidity-Temperature Sensors
The sensors of the FK Series are very robust humidity and temperature sensors, providing highly accurate measurements across the entire measuring range. They are available in duct mount and indoor versions, and their excellent measuring characteristics have made them some of the best-selling items for semi-industrial and industrial applications.
