Galltec-Mela logo Humidity measuring technology - high quality

Technical data

Relative Humidity
0...100 % RH
SZKA.0H
-80 ... + 200 °C
SZKA.HD
-60 ... + 160 °C
optionally pressure-resistant up to 10 or 20bar
Can be combined with transmitter head
AW (wallmount), AK (ductmount)
Standard cable length
1,5m

S series SZKA probes with cable

Humidity and temperature probes to be combined with transmitterhead AW or AK

Features

  • Operating temp. up to 200 °C
  • Accuracy : ±1,5 % RH
  • On-site calibration
  • IP65
  • Stainless steel sensor tube
  • Modulair, can be combined

Options

  • Pressure-resistant up to 10 bar
  • Ammonia-resistant

The probes of the s series are exchangeable and can be used in any combination with the transmitterheads AK or AW. Depending on the individual design, these sensors can be used at temperatures between -80 °C and +200 °C and at pressures of up to 25 bar.

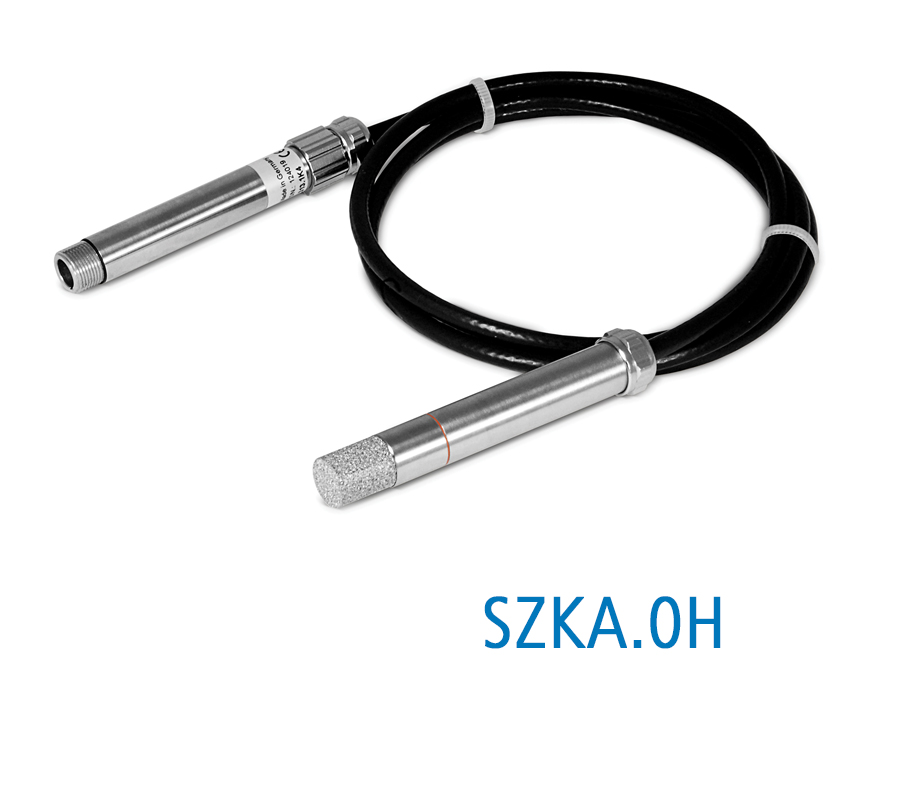

SZKA.0H -80…200 °C

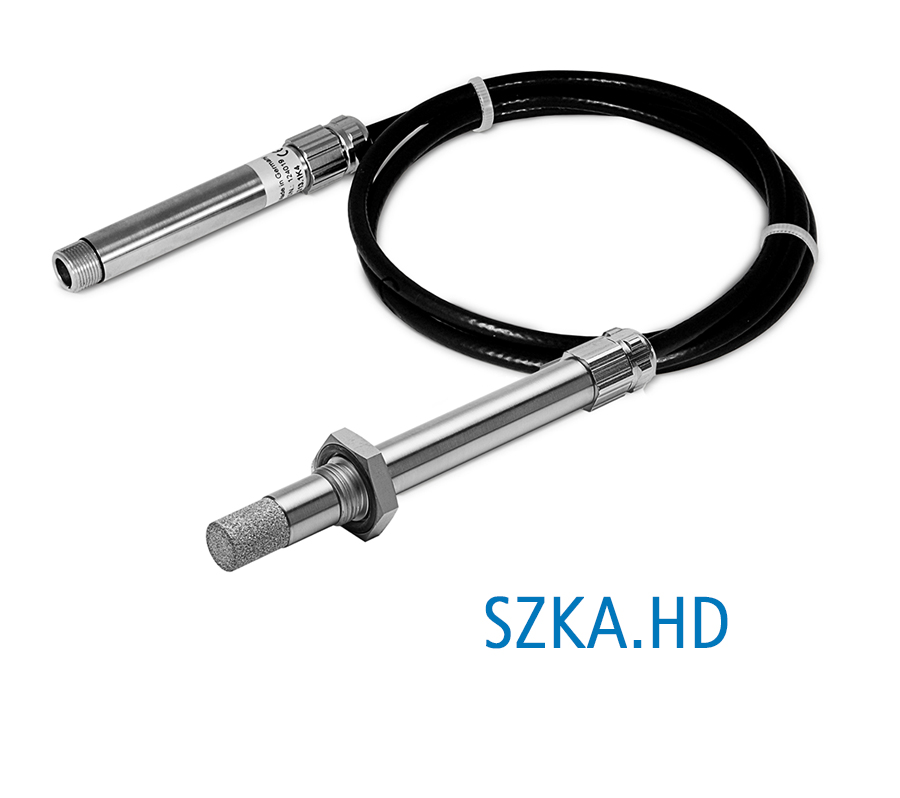

SZKA.HD -60…160 °C optionally pressure resistant

The scope of delivery includes the sintered high-grade steel filter ZE13. If a better dynamics should be required, we recommend to use the filter type ZE04 together with a PTFE filter.

Transmitter der A-Serie
The integrated hx processor can calculate further humidity values and apply them to the two outputs. With the RS485 standard all of the hx-values can be read simultaneously. Due to the digitisation of signal processing, the measurement accuracy for humidity achieves excellent values of ±1.5 % RH. In temperature measurement, the platinum resistance sensor achieves tolerances of ±0.15 K.

Often used in

  • Agriculture & food industry
  • Chemical industry
  • Clean rooms
  • Climate chambers
  • Drying plants
  • Paint shops
  • Paper & print
  • Pharmaceutical industry
  • Process and factory automation
